Setuay Products Are the Address of Quality
With 1500 – 2000 – 3000 – 4000 – 5000 – 6000 – 8000 – 10000 Liter Capacity Options

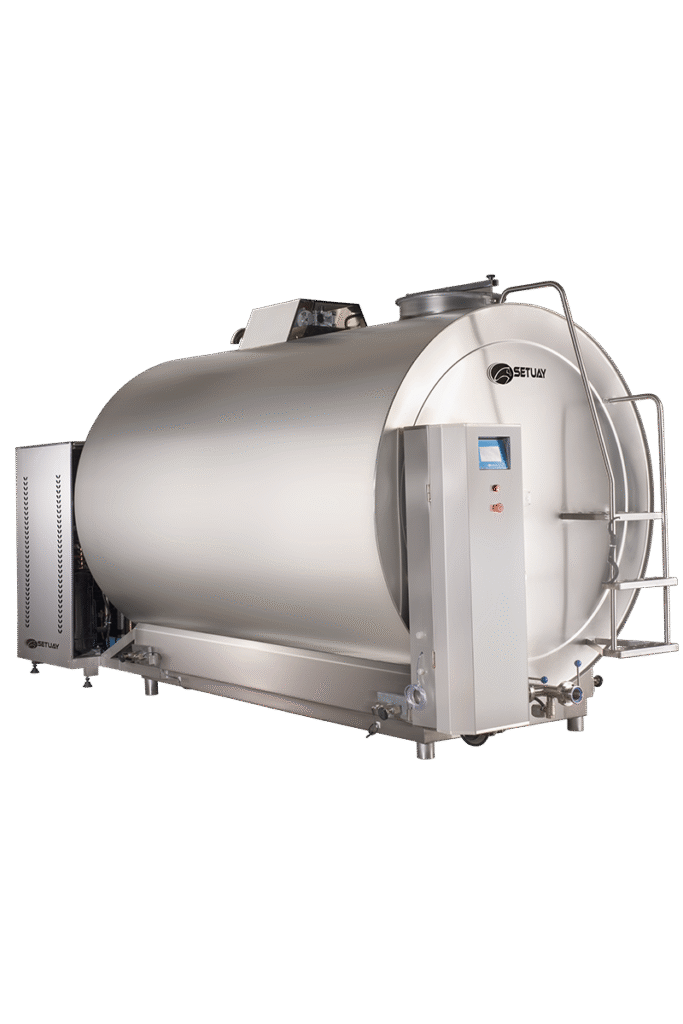

Designed for professional dairy processing facilities and large farms, the Horizontal Milk Cooling Tank offers maximum hygiene and performance in high-capacity production. Its durable stainless steel body, custom laser-welded evaporator, and advanced cooling system preserve milk freshness and ensure energy efficiency.
The Horizontal Milk Cooling Tank offers a reliable, fast, and hygienic cooling solution for large-scale dairy businesses. With flexible capacity options ranging from 1,500 liters to 10,000 liters, you can easily choose the model that best suits your business.
| Feature | Description |
|---|---|
| Material Quality | Manufactured from CrNi 304-grade stainless steel. |
| Evaporator System | ROLLBOND evaporator integrated into the 2 mm inner wall using advanced laser welding technology. |
| Sheet Thickness | Inner wall: 2 mm, outer wall: 1.5 mm — both made of stainless steel. |
| Mounting Structure | The cooling unit and tank body can be mounted on a single-piece chassis or on a separate cooling frame. |
| Mixing System | 1.1 kW, 28 rpm reducer motor with stainless steel mixing blades. |
| Insulation | 60 mm thick, water-based, high-density polyurethane insulation free from HCFC. |
| Valve and Outlet System | Controlled discharge via butterfly valve. |
| Lid System | Round manhole lid with a diameter of 400 mm or 500 mm. Equipped with a manual washing line and CIP (Clean-In-Place) washing ball for easy cleaning. |
| Drainage Design | Designed to ensure zero liquid residue remains inside the tank during discharge. |
| Welding Quality | Premium-grade laser and argon welding with smooth polishing finish. |
Horizontal Milk Cooling Tank provides flexibility suitable for large-scale production facilities with 1500, 2000, 3000, 4000, 5000, 6000, 8000 and 10000 liter capacity options.
Yes, the refrigeration system, powered by R-404A environmentally friendly gas, offers fast and frost-free performance even with minimum milk quantities; it can cool milk at 35–38°C to 4°C in a short time.
Tank, CrNi 304 paslanmaz çelikten üretilmiş olup lazer kaynaklı ve sızdırmaz yapısıyla maksimum hijyen sağlar. Manuel yıkama hattı ve CIP yıkama topu sayesinde temizlik kolaydır. Tahliye tasarımı ise sıfır sıvı kalacak şekilde optimize edilmiştir.
The IP65 electrical panel can operate on 220V–380V power. The control panel with a digital thermometer and automatic mixing programs activate the mixer when the milk reaches the specified temperature; times and intervals are user-programmable.
SETUAY, Turkey’s leading brand, adds value to your farms with milk cooling tanks, and we build the future together!
