Setuay Vertical Milk Cooling Tank
Setuay Products Are the Address of Quality

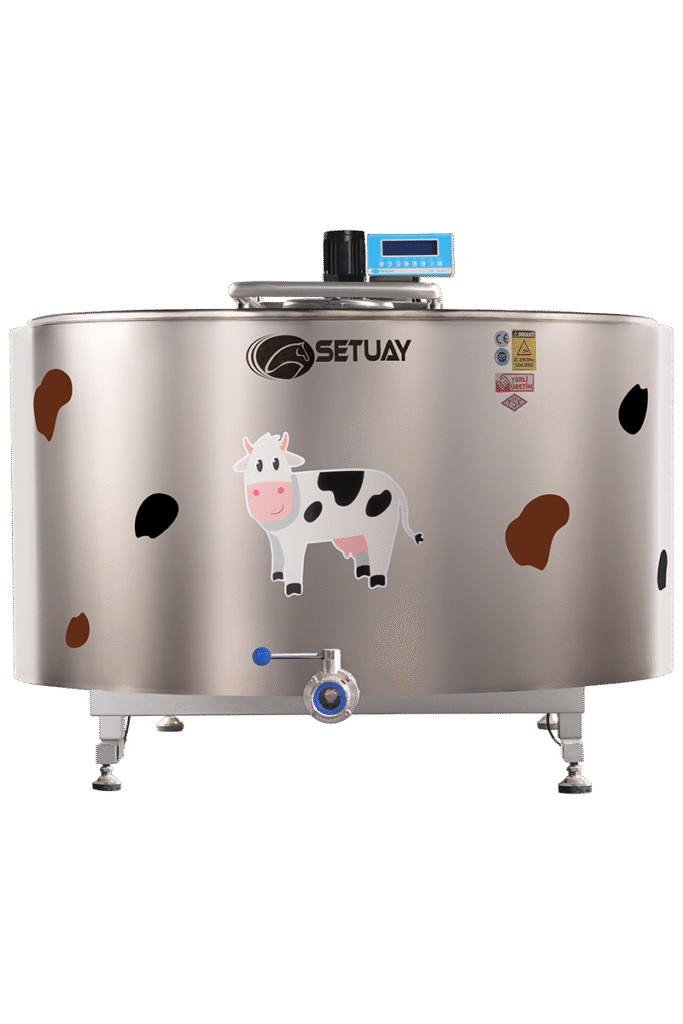

What is a Vertical Milk Cooling Tank?
Combining hygiene, efficiency, and rapid cooling performance in milk production, the Vertical Milk Cooling Tank is the ideal solution for dairies, farms, and milk collection centers. Its laser welding technology and high-quality stainless steel construction ensure long-lasting, trouble-free operation.
- Industrial hygiene and maximum milk freshness
- Laser-welded, long-lasting and leak-proof structure
- High energy efficient cooling performance
- Easy to use with digital control and automatic mixing
- Expandable structure with optional systems
| Feature | Description |
|---|---|
| Material Quality | CrNi 304-grade stainless steel. |
| Evaporator System | 2 mm inner wall with specially laser-welded ROLLBOND evaporator. |
| Sheet Thickness | Inner wall: 1.5 mm, Outer wall: 1 mm. |
| Assembly Structure | Cooling unit and tank body mounted on a single integrated chassis. |
| Mixing System | 25 W, 28 rpm reducer motor with stainless steel bladed mixer. |
| Insulation | 50 mm thick, water-based, high-density polyurethane free from HCFC. |
| Valve and Outlet System | Butterfly valve; optional elbow connection for ease of use. |
| Lid System | One-piece spring-loaded lid with a top Ø 200 mm product inlet cover. |
| Drainage Design | Optimized to ensure zero liquid residue during discharge. |
| Welding Quality | Premium-grade laser and argon welding with smooth polishing finish. |
| Adjustable Feet | Height-adjustable legs ensuring balance and stability on the ground. |
Contact SETUAY to request a quote and find solutions tailored to your needs.
COOLING SYSTEM
- Provides rapid, frost-free cooling, even with minimal milk volumes.
- Uses R-404A, an environmentally friendly refrigerant.
- Can quickly cool milk from 35–38°C to 4°C.
- Optionally compatible with 2-, 4-, or 6-parcel milking systems.
ELECTRICAL GROUP
- Safe operation with an IP65 electrical panel.
- Operates with 220V – 380V power.
- Temperature display with digital thermometer and easy-to-use electronic control board.
- With the automatic mixing program, the mixer activates when the milk reaches the set value; operating times can be adjusted at desired intervals.
Frequently Asked Questions
Our tanks are designed to suit different milk production volumes, with capacity options of 300, 500, 1000, 1500 and 2000 liters.
Yes, the refrigeration system, powered by R-404A environmentally friendly gas, provides fast and frost-free cooling performance even with minimum milk quantities; it can cool milk at 35–38°C down to 4°C in a short time.
The inner wall is made of 1.5 mm thick CrNi 304 stainless steel, laser-welded for a smooth and leak-proof structure. The drain design is optimized to ensure zero liquid remains during draining.
Its IP65 electrical panel ensures safe use. Automatic mixing programs, including a digital thermometer and electronic control card, activate the mixer when the milk reaches the set value, ensuring ease of use.
